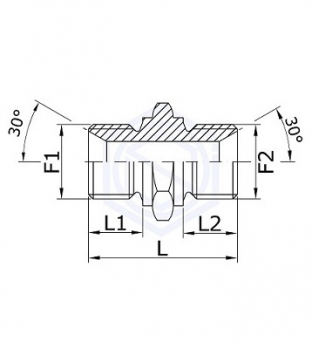

Junction Nipple Thread Mashio Gas 60 ° - Male Gas 60 ° DIN 3852
Back to category:
Prev
Prev
Module connector for connections in hydraulic systems, produced with turning cold-drawn steel material 11SMnPb37, protective treatment with white zinc.
| Code | Ø F1 | Ø F2 | CH |
|---|---|---|---|
| NP0001DN | 1/8 | 1/8 | 14 |
| NP0002DN | 1/4 | 1/4 | 19 |
| NP0003DN | 3/8 | 3/8 | 22 |
| NP0004DN | 1/2 | 1/2 | 27 |
| NP0006DN | 3/4 | 3/4 | 32 |
| NP0007DN | 1" | 1" | 40 |
| NR008DN | 1"1/4 | 1"1/4 | 50 |
